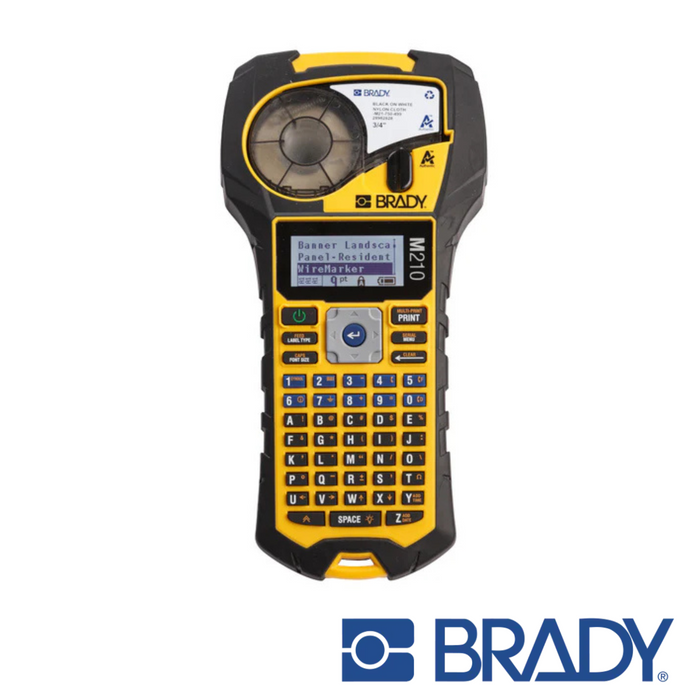

M210 PORTABLE LABEL PRINTER
All-in-one labeller offering drop-lock-and-go cartridges, protective rubber bumpers plus two year warranty (T&Cs apply) to combat the day-to-day demands of any job.
· Engineered long-lasting material quality – prints durable true-sized 6 – 19mm wide identification to maximise amount of data
· Label length can be adjusted using high performance continuous material
· Requirements can be fulfilled with up to 7 different industry specified materials that last
· Durability is guaranteed – drop tested printer, rugged with moulded rubber bumpers ensure optimal protection from falls
· Ergonomic cutter and label grabber holds the label after cutting, preventing the label from falling out
· Designed for ease of use – ABC keypad, hot keys, graphics library and menu functions provide speed and efficiency
· Smart Cell Technology for automatic label setup and automatic formatting for wire wraps, terminal blocks, patch panels, cable flags and general labels
FEATURES AND BENEFITS
· Intelligently design, create and print with a standalone portable printer
· Create labels from scratch using on-board label design wizards
· Save label designs on the printer for later re-use
· Quickly create new labels with on-board label design wizards
· Easily review the printer and label cartridge status on-screen
· Pre-sized or continuous labels can be printed in quality 203 dpi prints
· Wide range of compatible cartridges from reliable, industrial-grade label materials
· Labels are designed to stick and stay attached to cable and component surfaces, and resist factors such as cold, heat, moisture, and weathering
· Label cartridges can be easily switched with a drop-lock-print system
· 0.7kg portable design ensures easy handling
· Can survive up to 1.8m falls
· Resistant to military specification shocks
TECHNICAL INFORMATION
Size - Width (mm) |
114.30 mm |
Size - Height (mm) |
241.30 mm |
Size - Depth (mm) |
63.50 mm |
Weight (kg) |
0.75 kg |
Display Size |
55.88 mm |
Minimum Label Height (mm) |
6.35 mm |
Min. Label Width (mm) |
6.40 mm |
Dimensions |
114.30 mm (W) x 241.30 mm (H) x 63.50 mm (D) |
Materials Supported |
Heat-shrink Polyolefin, Nylon Cloth, Paper, Polyester, Polypropylene, Self-laminating Polyester, Self-laminating Vinyl, Vinyl |
Battery Type |
Optional AA Battery, Optional Rechargeable Lithium-Ion Battery |
Print Technology |
Thermal Transfer |
Max. Label Width (mm) |
19.05 mm |
Max. Liner Width (mm) |
22.22 mm |
B- Numbers supported |
B-342, B-423, B-427, B-430, B-461, B-488, B-499, B-595, B-7425 |
Compatible Media |
M21- |
Further technical information available on M210 Portable Label Maker Datasheet
