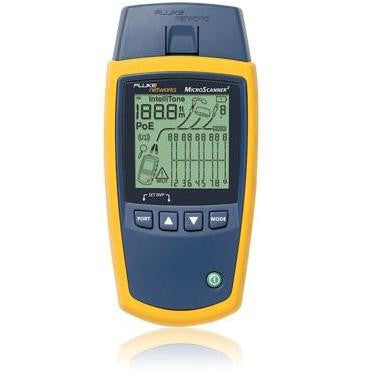

Fluke Networks MicroScanner² Cable Verifier - MS2-100

Regular price £443.00 GBP

The MicroScanner2 Cable Verifier presents a revolutionary change in voice, data, and video cable testing. It starts by taking results from what was four different test modes and displaying them all at once – graphical wiremap, pair lengths, distance to fault, cable ID, and far end device.  What’s more, its integrated RJ11, RJ45, and coax cable test ports support virtually any type of low-voltage cable testing with no need for awkward adapters.  The end result is reduced test time and technician error.  That makes high-quality installations more efficient than ever.

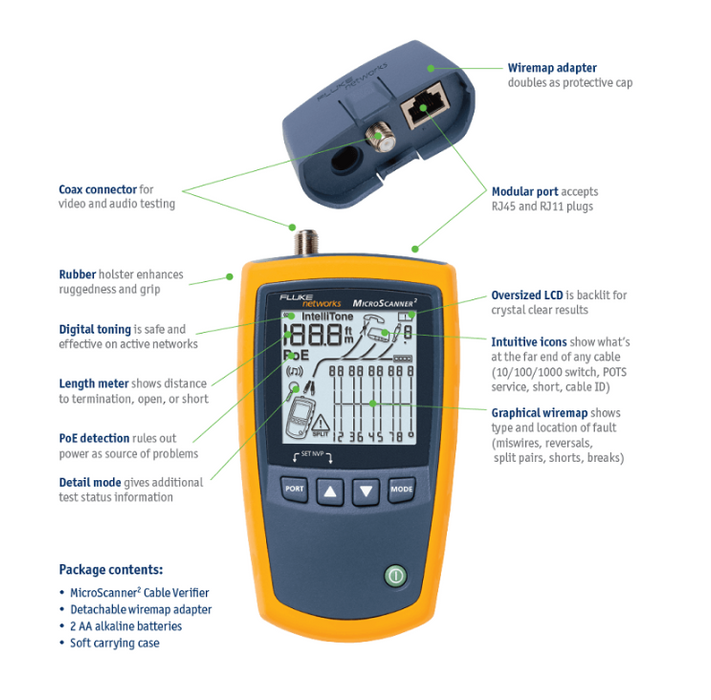

  •  Revolutionary Interface – graphical wiremap, length, cable ID, and distance to fault displayed on one screen.
  • Multimedia Support – tests all common media types including RJ11, RJ45, Coax, with no need for adapters
  • IntelliTone Toning – trace virtually any cable or wire pair with IntelliTone digital and analogue toning
  • VDV Service Detection – verifies today’s media services, including 10/100/1000 Ethernet, POTS, and PoE
  • Rugged Housing – integrated rubber holster enhances grip and makes it durable enough for the toughest jobs
  • Oversized Display – large, backlit LCD makes results crystal clear whether in bright sunshine or in a dark closet

Perfect as a copper cable tester, copper cabling troubleshooting tool and as a wiremap tester.

Features

  • Revolutionary Interface
  • Multimedia Support
  • IntelliTone Toning
  • VDV Service Detection
  • Rugged Housing

Test Connectors

Twisted-pair: UTP, FTP, SSTP 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs; Coax: F-connector for 75 Ω, 50 Ω, 93 Ω cables

Cable Tests

Length (460 m or 1500 ft. with resolution to 0.3 m or 1 ft.), wiremap to TIA-568A/B standards, remote ID locators; displays results on one screen

Tone Generator

IntelliTone digital tone: [500 KHz]; analog tones: [400Hz, 1KHz]

PoE Detection

Solicits and detects the presence of 802.3af compatible PoE (Power over Ethernet) devices

Ethernet Port Test

Advertised speed of 802.3 Ethernet ports (10/100/1000)

Power Source

Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries
Battery life: 20 hours of typical use
Other compatible battery types: 2 AA photo lithium, NIMH, NICAD

Dimensions

3 in x 6.4” x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm)

Weight

0.8 lbs. (363 grams)

Display

Monochrome liquid crystal display (LCD) with backlight

Calibration

User-configurable NVP for twisted pair and coax; determines actual NVP with known length of cable

Operating Temperature

32 °F to 113 °F (0 oC to 45 oC)

Storage Temperature

-4 °F to +140 °F (-20 oC to +60 oC)

Operating Humidity

90 % (50 °F to 95 °F; 10 oC to 35 oC)

(%RH without condensing)

75 % (95 °F to 113 °F; 35 oC to 45 oC)

Shock Vibration Meets requirements for MIL-PRF-28800F for Class 2 random vibration; 1 m drop test with and without wiremap adapter attached
Safety EN 61010-1 2nd Edition
Altitude 4000 m; Storage: 12000 m
EMC EN 61326-1
Agency Certifications N10140 C-Tick EMC standard; FCC Part 15 Class A; CE European Union Directives Pollution Degree 2
Warranty One year
Part Number Description
 MS2-100

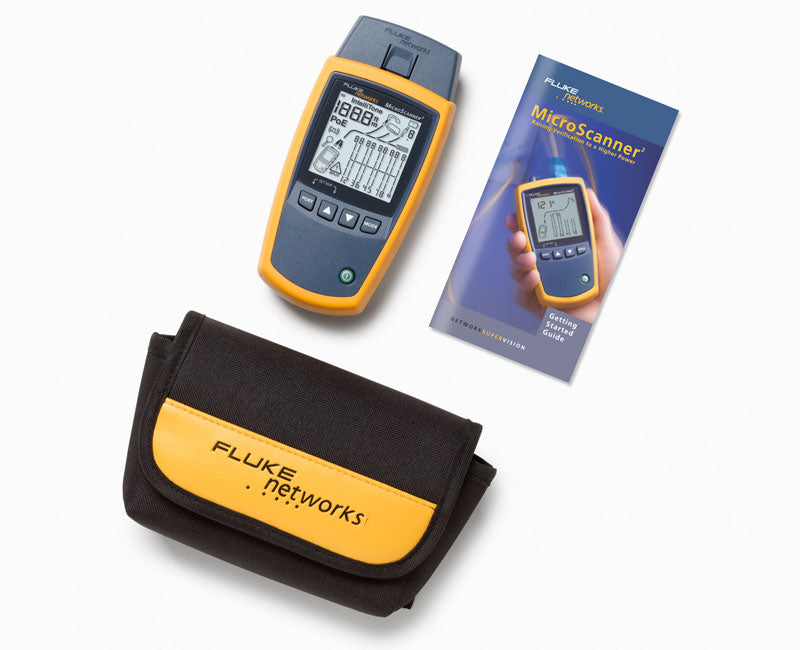

Contains: MicroScanner2 Cable Verifier with main wiremap adapter, multi-language Getting Started Guide, batteries, and Fluke Networks carry pouch

MS2-KIT

Contains: MicroScanner2 Cable Verifier with main wiremap adapter, remote identifiers #2-7, IntelliTone Pro 200 probe, shielded twisted-pair RJ45 patch cord, RJ11 patch cord, clip-set RJ45 to 8 alligator clip bare wire adapter, F Coax push on patch cord, accessory soft pouch, (2) AA alkaline batteries, (1) 9V alkaline battery, MicroScanner2 Getting Started Guide, IntelliTone Pro Getting Started Guide, packaged in a deluxe Fluke Networks carry case

MS2-TTK

Contains: MicroScanner2 Cable Verifier, IS60 Pro-Tool Kit, IntelliToneTM 200 Probe, RJ11 and RJ 45 patch cables, lanyard, quick start guide, and 9-volt battery, packaged in a deluxe Fluke Networks carry case.

MS2-FTK

Contains: MicroScanner (MS2-100) and SimpliFiber Pro (FTK1000) Fibre Test Kit.

MS2-IDK27

Contains: MicroScanner2 Remote Identifier Kit #2-7
