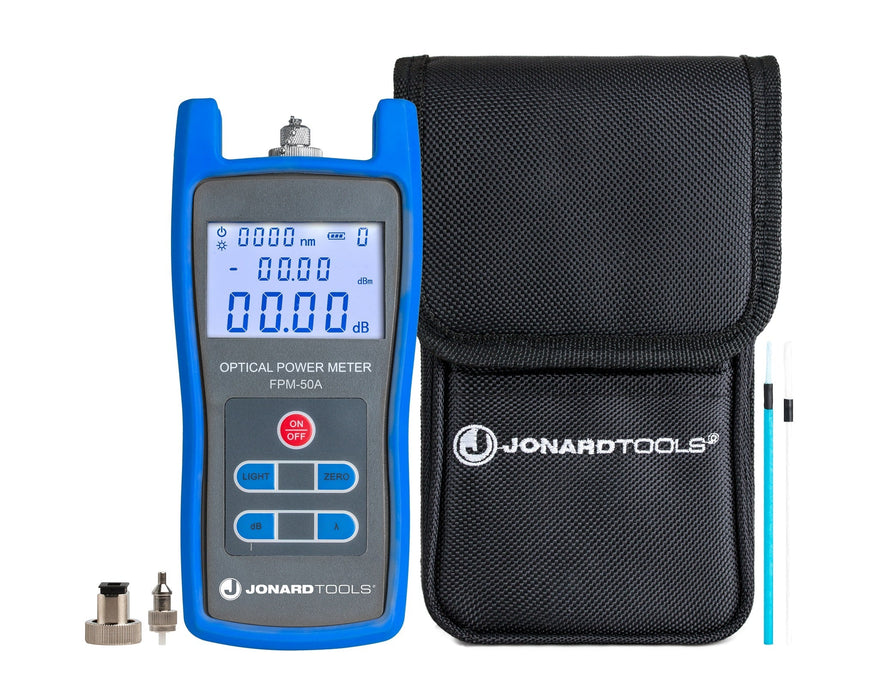

The Jonard Tools Fibre Optic Power Meter is perfect for measuring both the absolute optical power and relative power loss in fibre optic cables. This power meter features the following:
• Measures a wide variety of wavelengths from 800-1650 nm, with a mere 0.01 dB resolution
• Measures 6 pre-set calibrated wavelengths with high precision to determine absolute or relative power
• Special function of the unit allows the device to be manually calibrated as needed
• LED screen is backlit for viewing in low light locations and a 10 minute auto-off helps preserve battery life
• Dust-proof button design and shatter-resistant sleeve protect the tool to last a lifetime
• Comes with FC, SC, and LC adapters so that fibre connectors can be directly connected to the tool
o The FC/SC adapters are for APC/PC/UPC connectors
o The LC adapter is for PC/UPC connectors only
Includes:
• Fibre Optic Power Meter
• Instruction Manual
• Protective Cover
• (3) AA Batteries (required for operation)
• (2) Cleaning Swabs
• FC Adapter
• LC Adapter
• SC Adapter
• Nylon Carry Case
Measurement Range
Measurement Range: -50 dBm to +26 dBm
Included Adapters
Included Adapters: FC, SC, LC
Specifications
Connector Types: FC, SC (APC/PC/UPC) & LC (PC/UPC)
Calibrated Wavelengths (nm): 850, 980, 1300, 1310, 1490, 1550, 1625, 1650
Detector Type: InGaAs
Measurement Range: -50 dBm to +26 dBm
Single Mode Range: 850, 980, 1300, 1310, 1490, 1550, 1625, 1650 nm, ≤ ± 0.25 dB
Multi Mode Range: 850, 1300 nm, ≤ ± 0.8 dB
Resolution: 0.01 dB
Operating Time: ≥ 130 hours
Battery Type: (3) AA batteries
Dimensions: 17.78 cm x 8.26 cm x 2.54 cm
Weight: 227g
• Measures a wide variety of wavelengths from 800-1650 nm, with a mere 0.01 dB resolution
• Measures 6 pre-set calibrated wavelengths with high precision to determine absolute or relative power
• Special function of the unit allows the device to be manually calibrated as needed
• LED screen is backlit for viewing in low light locations and a 10 minute auto-off helps preserve battery life
• Dust-proof button design and shatter-resistant sleeve protect the tool to last a lifetime
• Comes with FC, SC, and LC adapters so that fibre connectors can be directly connected to the tool
o The FC/SC adapters are for APC/PC/UPC connectors
o The LC adapter is for PC/UPC connectors only
Includes:
• Fibre Optic Power Meter
• Instruction Manual
• Protective Cover
• (3) AA Batteries (required for operation)
• (2) Cleaning Swabs
• FC Adapter
• LC Adapter
• SC Adapter
• Nylon Carry Case
Measurement Range
Measurement Range: -50 dBm to +26 dBm
Included Adapters
Included Adapters: FC, SC, LC
Specifications
Connector Types: FC, SC (APC/PC/UPC) & LC (PC/UPC)
Calibrated Wavelengths (nm): 850, 980, 1300, 1310, 1490, 1550, 1625, 1650
Detector Type: InGaAs
Measurement Range: -50 dBm to +26 dBm
Single Mode Range: 850, 980, 1300, 1310, 1490, 1550, 1625, 1650 nm, ≤ ± 0.25 dB
Multi Mode Range: 850, 1300 nm, ≤ ± 0.8 dB
Resolution: 0.01 dB
Operating Time: ≥ 130 hours
Battery Type: (3) AA batteries
Dimensions: 17.78 cm x 8.26 cm x 2.54 cm
Weight: 227g
