Jonard Optical Light Source with FC/LC/SC Adaptors For PC/UPC Connectors

£240.43 GBP
Original price £240.43 GBP - Original price £240.43 GBP
Original price
£240.43 GBP - £240.43 GBP
Current price £240.43 GBP
Next day delivery On orders places before 2pm
Need Some help Call us on 01403 756588

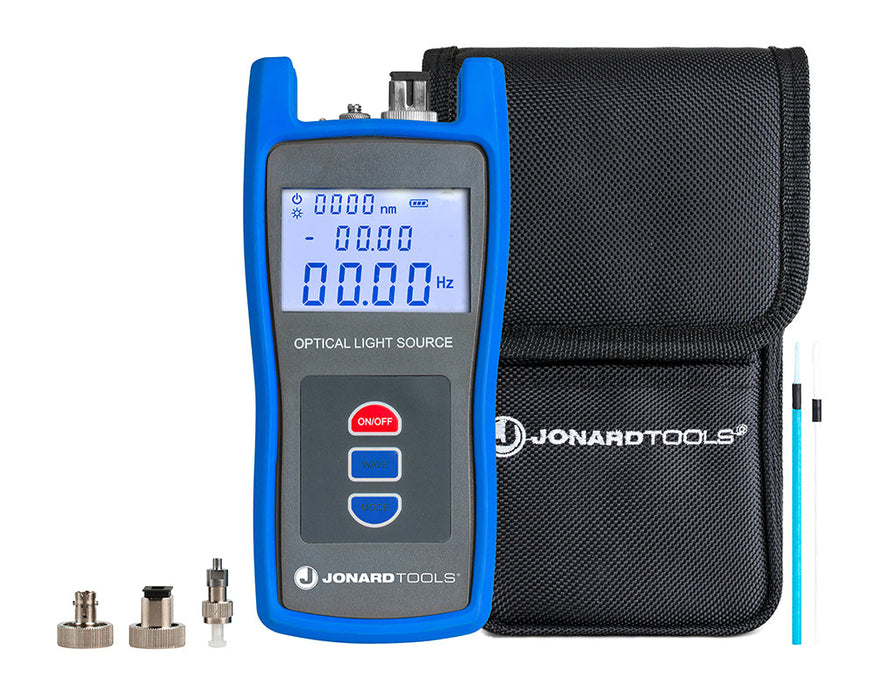

Designed to provide either 1310nm or 1550nm wavelengths, this optical light source is the perfect tool for providing a stable light source for single mode fibre measurements. This optical light source features the following:
• Includes FC, SC, and LC adapters to directly connect to UPC/PC FC, SC, and LC fibre connectors
• Highly stable output power and wavelengths
• Has four different modulation outputs (CW, 270 Hz, 1 kHz, 2 kHz) at 1310 N-m and 1550 nm wavelengths
• Flush button design makes it easy to use and prevents dust from entering the unit
• Shatter-resistant sleeve protects the light source from falls or other damage
• Backlit LCD screen provides a clear display, ideal for dark places
• Fibre Optic Light Source
• FC Adapter
• LC Adapter
• SC Adapter
• (2) Cleaning Swabs
• (3) AA Batteries (required for operation)
• Storage Pouch

Fibre Type
Fibre Type: Single-mode

Connector Types: 1.25 mm LC and 2.5 mm FC/SC
Wavelengths (nm): 1310, 1550
Typical Output Power: -7 dBm
Output Stability: ± 0.05 dB / 15 min or ± 0.1 dB / 8 hr
Operating Temperature: -10 ± 60°C
Spectral Width: ≤ 10 nm
Modulation Frequencies: CW / 270 Hz / 1 kHz / 2 kHz
Battery Type: (3) AA 1.5V alkaline batteries
Storage Temperature: -25 ± 70°C
Dimensions: 17.78cm x 8.10cm x 3.18cm
Weight: 304g


Part Number Description
