LinkSprinter 300 by netAlly

SKU LSPRNTR-300
£358.00 GBP
Original price £358.00 GBP - Original price £358.00 GBP
Original price
£358.00 GBP - £358.00 GBP
Current price £358.00 GBP
In stock
  • Touchscreen Display
  • Cloud Based Results Management
  • Network Connection Tests
  • Channel Utilization and Interference
  • Wired Ethernet Tests
Next day delivery On orders places before 2pm
Need Some help Call us on 01403 756588

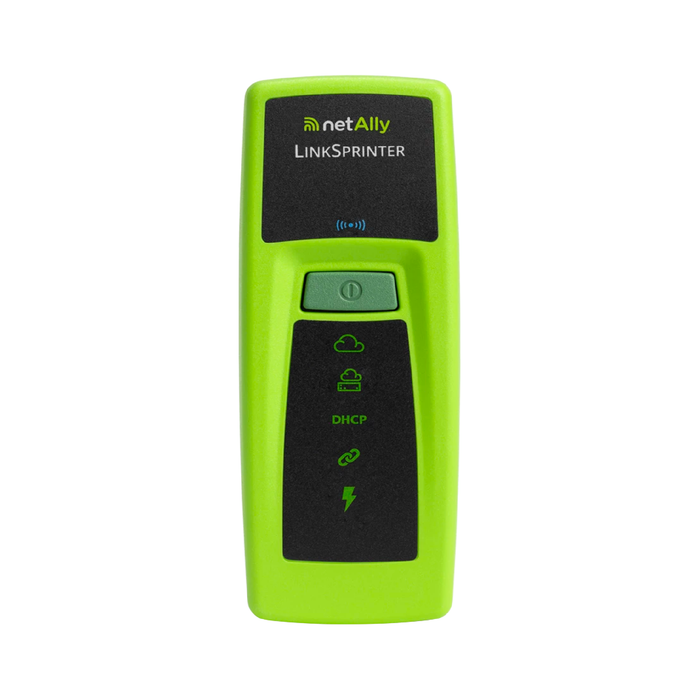

LinkSprinter 300

LinkSprinter 300, the pocket network tester from netAlly provides simple,10-second network connectivity tests on copper Ethernet links. Making it the ideal network tester of choice for frontline staff.

Automated reporting to the included Link-Live Cloud Service Essentials ensures network connectivity status and path information is documented for every link.

  • Power Over Ethernet (PoE) Tester diagnoses and tests Power over Ethernet (PoE), Link to the switch, DHCP, Gateway, and Internet connection
  • Get VLAN, switch name, and port information via CDP/LLDP/EDP for your managed switches
  • Expert network troubleshooting techniques delivered to colour graded LEDs
  • Automated reporting to Link-Live Cloud Service
  • Get detailed test results sent directly to your email
  • Proxy support

Download the NetAlly Linksprinter Pocket Network Tester specification sheet HERE.

Features

  • Blink Light on Switch Port
  • Cable Test
  • Speed and Duplex
  • LinkSprinter Team Packs
LinkSprinter Features by Model 300
Diagnose and test Power over Ethernet (PoE), Link to the switch, DHCP, Gateway, and Internet connection X
Get VLAN, switch name, and port information via CDP/LLDP/EDP for your managed switches X
Expert network troubleshooting techniques delivered to color graded LEDs X
All test results are sent to the Link-Live Cloud Service X
Get detailed test results sent directly to your email X
Access your test results through your phone's browser by connecting to the built-in Wi-Fi access point X
Mobile App for Android (search "LinkSprinter" on google play) X
Proxy support X
See cable fault and distance to open or short X
Blink light on switch port X

Specifications

General
Dimensions 4.36” x 1.6” x 1.28” (11.07 cm x 4.06 cm x 3.25 cm)
Weight with batteries Model 300: 0.255 lb (0.116 kg)
Power 2 AA Alkaline, or Power over Ethernet



Environmental
Operating Temperature and Relative Humidity 32°F to 122°F (0°C to 50°C ), Relative Humidity 5% to 90% Non-condensing
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Shock and Vibration Random 2g, 5Hz – 500 Hz (class 2), 1 m drop
Safety CAN/CSA-C22.2 No. 61010-1-12, UL Std. No. 61010-1 (3rd Edition), IEC61010-1:2010, Pollution degree 2
Altitude Operating: 13,123 ft. (4,000 m) Storage: 39,370 ft. (12,000 m)
EMC EN 61326-1:2006
Certifications and Compliance Conforms to relevant European Union directives
Conforms to relevant Australian standards
Listed by the Canadian Standards Association
Conforms to relevant FCC standards



Wi-Fi Hot Spot
Specification Compliance IEEE 802.11b/g
Frequency Channels 802.11 Channels 1 thru 11 default is 11
Operating Frequency 2.412 ~ 2.484 GHz, ISM Band
Regulatory Domain EN 301 489-1/17
Browser Internet Explorer 9.0, Firefox 3.6, Chrome 5.0, Safari 5.1 (minimum revision)
Part Number Description
LSPRNTR Contains: LinkSprinter Model & wrist strap
